Frame Scaffolding

Our frame scaffolding is a trusted construction solution widely utilized across Asia, Southeast Asia, and Europe. Tailored to regional construction needs, it comes with customized specifications for different markets. For example, in Southeast Asia, thestan popular size dard is 4' (1219mm) in width,matched with optional heights of 914mm, 1219mm, 1524mm, 1700mm, and 1930mm.

Core Advantages

Rational Structure & Reliable Safety
With a scientifically designed framework, the scaffolding features simple assembly steps and fast operation, ensuring stable and secure performance in various construction scenarios.
Easy Transportation & High Efficiency
It can be quickly disassembled and assembled, which greatly reduces transportation volume and on-site labor input, helping you save time and costs.
Lightweight & User-Friendly
Each component weighs only about 20kg, making it easy to carry and maneuver by construction workers, even in narrow or high-altitude work areas.
Tool-Free Operation
No additional tools are required for assembly and disassembly—all processes can be completed manually, improving construction efficiency and reducing operational complexity.

Key Components

Frame, Joint Pin, Lock Pin, Cross Brace, Base Jack, Platform

Standard Set Configuration

A complete frame scaffolding set includes:

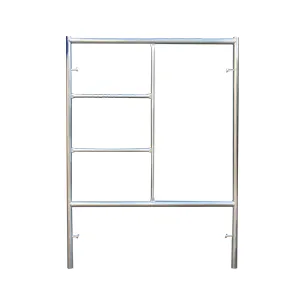

2 main frames

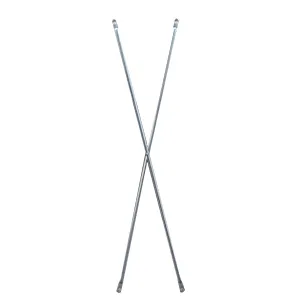

2 pairs of cross braces
4 joint pins
🌟 Frame Scaffold Product Specifications

Category	Details
Product Name	Frame Scaffold
Material	High-quality Q195 Steel
Available Sizes	1219×1700mm、1219×1930mm、1219×1524mm、1219×914mm、914×1700mm（Custom sizes available）
Surface Treatment	Pre-galvanized / HDG (Hot-Dip Galvanized) / Painted
Types	Mason Frame、A Frame、Walk Through Frame（More types on request）
Standard Accessories Set	2 pcs main frames + 2 pairs cross braces + 4 pcs pins + 1 pc platform
Main Pipe Spec	42×2.0/1.8/2.2 mm（Outer Pipe）42×2.0/1.5/1.8 mm（Inner Pipe）25×1.5 mm（Alternative frame）
Cross Brace Spec	21.3×1.5 mm（Length customizable）
Joint Pin Spec	35×1.5×225/210 mm


Product Images

Here is the advantages of frame scaffolding system:

1. Easy erection, strong loading capacity, safety and stability.

2. Easy to transport and knock down, high efficiency, save massive manpower and resource.
3. Easy to carry and operate with the weight about 20kg/piece.
4. Assembly & disassembly with hands only.


Specifications

Here are some of specifications for frame scaffolding system, you are welcomed to contact us for more specifications or customized service.

Production Equipment


Applications


Packing and Shipping


Company Information

Changsha Xiangjia Metal Material Trading Co., Ltd.

Established in 1998, Changsha Xiangjia Metal Material Trading Co., Ltd. has emerged as a preeminent manufacturer and supplier of construction materials across China. Specializing in the research, development, production, and sales of scaffolding, aluminum formwork, fasteners and couplers, the company has further expanded its business scope to incorporate steel trading, logistics service,s and wire & cable distribution.

Boasting over 10 subordinate branches and four state-of-the-art manufacturing bases, the enterprise holds independent import and export rights, with its business footprint extending to more than 50 countries and regions worldwide. Presently, it maintains long-term strategic partnerships with over 5,000 large-scale international purchasers.

Core Strengths

Industry Legacy: Since its inception in 1998, the company has accumulated nearly two decades of rich experience in the construction materials manufacturing sector.
Product Philosophy: Quality is the cornerstone of safety, and safety represents the ultimate criterion for all our products.
Authoritative Certifications: Our product range has obtained a full suite of international certifications, including ISO, CE, SGS and BV.
Production Scale: The four manufacturing bases cover a total area of over 400,000 square meters, ensuring robust production capacity.
Customization Services: We offer flexible OEM solutions and customized product services to meet the diverse needs of global clients.
